Connecting the eChook to the Car

PreviousPairing with a phoneNextPower and Voltage

Last updated 11 months ago

Was this helpful?

Now that the board is sending data to the phone, it needs to have some useful data to send. All of the external connections to the board go through pluggable terminal connectors. This makes it easy to wire into the vehicle’s harness with the screw terminals, and makes the board easy to remove from the car if necessary.

There is a post with some guidance to building a Greenpower car wiring harness on the eChook forum .

The image below shows the external interfaces to the board numbered, with details on each connection in the table.

Label the connectors on the harness side to make it easier to identify them in future.

Connector Pin Out

Connector

null

Signal

Use

Power In

1

24v

Power and 24V monitoring

2

12v

Monitoring the lower battery voltage.

3

Ground

Main grounding point for the board.

Motor PWM

1

5V PWM Output

A PWM output. Could control the drive motor, or a fan etc.

2

Ground reference

Ground for PWM line

RPM

1

5v Supply

5V supply for the Hall Effect Sensors

2

Motor RPM

Pulsed 5v signal from motor hall effect sensor

3

Wheel RPM

Pulsed 5v signal from wheel hall effect sensor

4

Ground reference

Ground for Hall Effect Sensors

Therm

1

Temp 1 - Line to thermistor

Connection to thermistor 1. Thermistor connects between here and ground

2

Temp 2 - Line to thermistor

Connection to thermistor 2. Thermistor connects between here and ground

3

Ground reference

Ground connection for thermistors

Throttle

1

5v Supply

5v supply for the throttle

2

0-5v throttle input

Analogue input for a variable throttle, or digital for a push button.

3

Ground reference

Ground reference for throttle

Ext Buttons

1

Ground reference

Ground reference for buttons

2

Brake Switch

Brake input for logging brake use

3

Button 1 Active LOW digital Input

Input for 'Race Start' button needed for lap counting

4

Button 2 Active LOW digital Input

Input for 'Switch Screen' button.

Current

1

5v Supply

5V to current sensor

2

Current Reference Analogue input

Input from current sensor reference pin

3

Current Sensing Analogue input

Input from Current Sense pin

4

Ground reference

Ground reference for current sensor

here

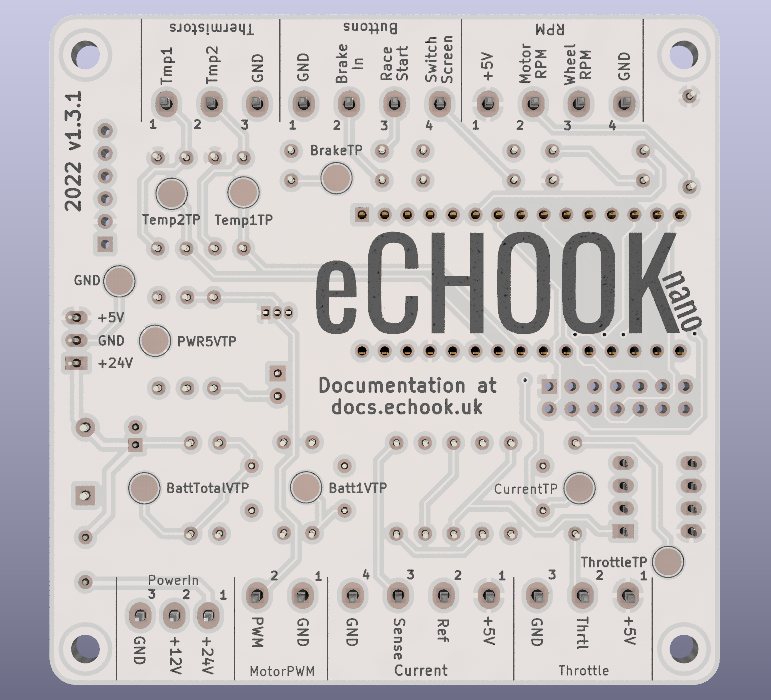

eChook nano v1.3.1 Board Bottom View with connector pinouts
